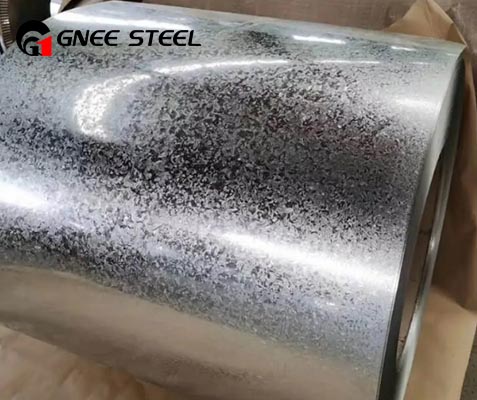

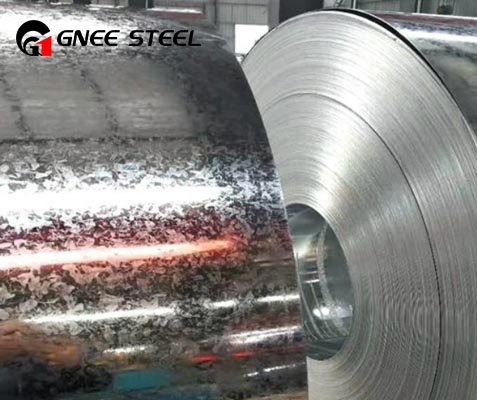

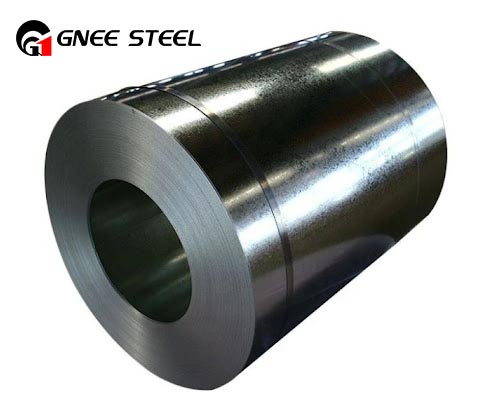

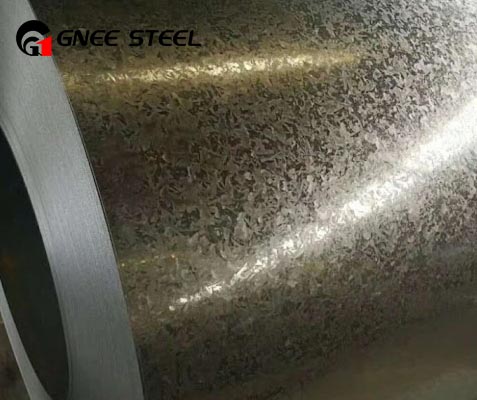

DX51D Z275 Hot Dipped Galvanized Steel Coils
DX51D Z275 is a cold-formed structural quality hot-dip galvanized steel coil. The 'DX51D' indicates it is a non-aged, deep drawing quality steel conforming to EN 10346 standards, equivalent to JIS SGCC. The 'Z275' denotes a zinc coating weight of 275 g/m² (total both sides), providing excellent corrosion resistance. It features good paint adhesion, weldability, and formability, making it ideal for structural construction, home appliances, and automotive applications.
ASTM: A653 DX51DJIS: SGCCGB: DC01Z
MaterialEN 10346 / JIS G3302 / GB/T 2518
Thickness0.10-2.0 mm
Width600-1500 mm
LengthCoil / Cut to Length
MOQ1 Ton
Lead Time1-15 Days
PortTianjin / Shanghai
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | EN 10346 / JIS G3302 / GB/T 2518 | Standard | EN 10346 / JIS G3302 / GB/T 2518 |
| Thickness Range | 0.10-2.0 mm | Width Range | 600-1500 mm |
| Length Range | Coil / Cut to Length | MOQ | 1 Ton |
| Lead Time | 1-15 Days | Port of Shipment | Tianjin / Shanghai |
| C | ≤0.10 | Si | ≤0.03 |
| Mn | ≤0.50 | P | ≤0.05 |
| S | ≤0.03 | Yield Strength | ≥140 MPa |
| Tensile Strength | ≥270 MPa |
