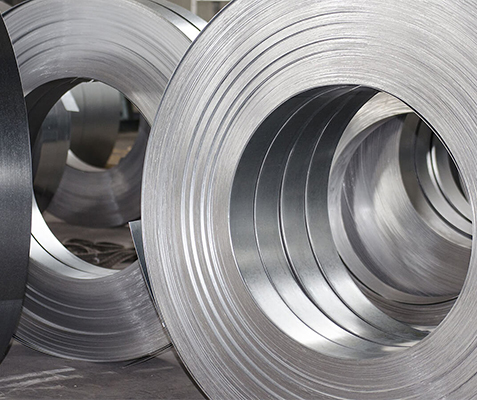

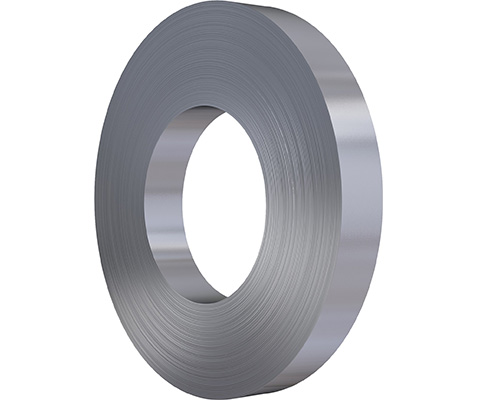

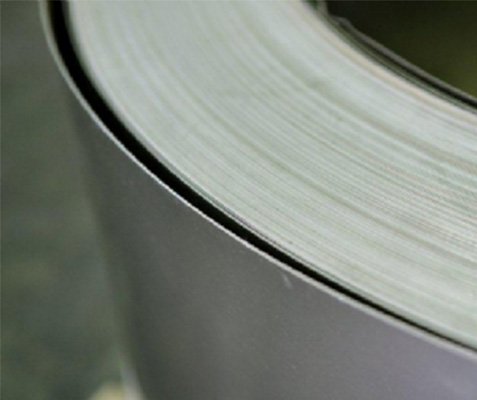

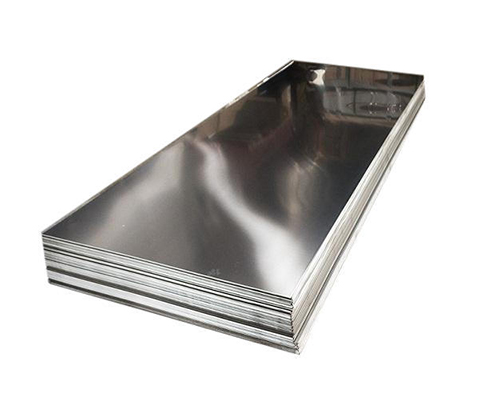

317LMN Stainless Steel Plates/Coils
Alloy 317LMN (UNS S31726) is an austenitic chromium-nickel-molybdenum stainless steel with corrosion resistance superior to 316L and 317L. The higher molybdenum content, combined with an addition of nitrogen, provides the alloy with its enhanced corrosion resistance, especially in acidic chloride containing service. It features high temperature strength, good oxidation resistance, and excellent fatigue performance.
ASTM: UNS S31726EN: 1.4571GB: 0Cr18Ni14Mo2CuN
MaterialASTM A240 / ASTM A480 / EN 10088 / JIS G4305
ThicknessCold rolled: 0.3~3.0mm; Hot rolled: 3.0~120mm
Width1000mm, 1220mm, 1500mm, 2000mm, etc.
Length2000mm, 2440mm, 6000mm, etc.
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | ASTM A240 / ASTM A480 / EN 10088 / JIS G4305 | Standard | ASTM A240 / ASTM A480 / EN 10088 / JIS G4305 |
| Thickness Range | Cold rolled: 0.3~3.0mm; Hot rolled: 3.0~120mm | Width Range | 1000mm, 1220mm, 1500mm, 2000mm, etc. |
| Length Range | 2000mm, 2440mm, 6000mm, etc. | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin |
| C | ≤0.030 | Si | ≤0.75 |
| Mn | ≤2.00 | P | ≤0.045 |
| S | ≤0.030 | Cr | 17.0 - 20.0 |
| Ni | 13.5 - 17.5 | Mo | 4.0 - 5.0 |
| N | 0.10 - 0.20 | Cu | --- |
| Tensile Strength | ≥550 MPa | Yield Strength | ≥240 MPa |
| Elongation | ≥40% | Hardness (Brinell) | ≤223 HB |
