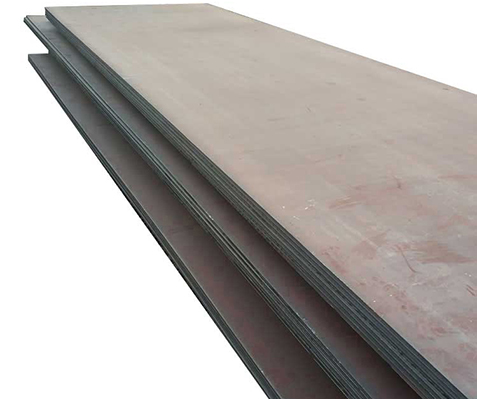

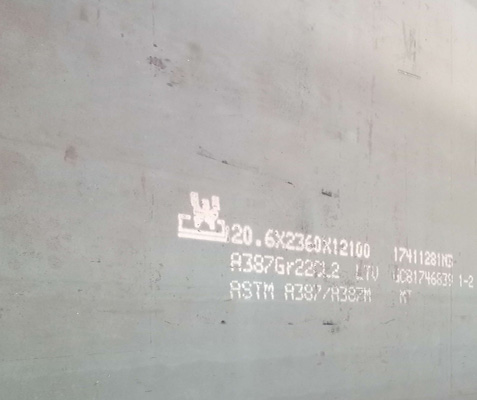

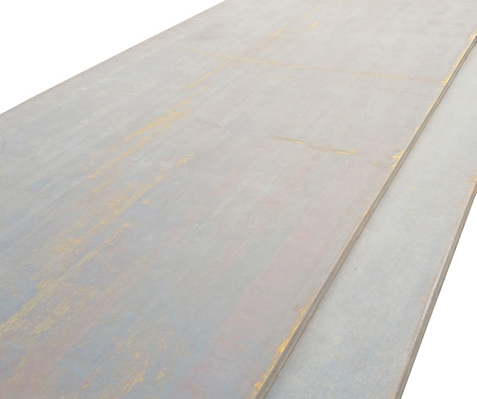

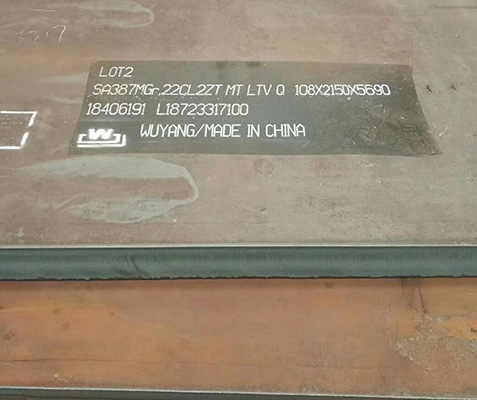

ASME SA 387 GRADE 22 Class 2 steel plate for boilers and pressure vessels
ASME SA 387 Grade 22 Class 2 is a chromium-molybdenum alloy steel plate designed for high-temperature service in pressure vessels. It offers excellent corrosion and oxidation resistance, making it suitable for sour gas environments. This material is widely used in the oil, gas, and petrochemical industries for fabricating boilers and pressure vessels that operate at elevated temperatures.
ASTM: A387 Gr.22DIN: 10CrMo9-10GB: 12Cr2Mo1R
MaterialASME SA 387 / ASTM A387
Thickness5-150 mm
Width1000-3000 mm
Length6000-14000 mm
MOQ1 Ton
Lead Time15-30 days
PortTianjin / Shanghai
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | ASME SA 387 / ASTM A387 | Standard | ASME SA 387 / ASTM A387 |
| Thickness Range | 5-150 mm | Width Range | 1000-3000 mm |
| Length Range | 6000-14000 mm | MOQ | 1 Ton |
| Lead Time | 15-30 days | Port of Shipment | Tianjin / Shanghai |
| C | 0.05-0.15 | Si | ≤0.50 |
| Mn | 0.30-0.60 | P | ≤0.035 |
| S | ≤0.035 | Cr | 2.00-2.50 |
| Mo | 0.90-1.10 | Tensile Strength | 515-690 MPa |
| Yield Strength | ≥310 MPa | Elongation (2 in) | ≥18% |
