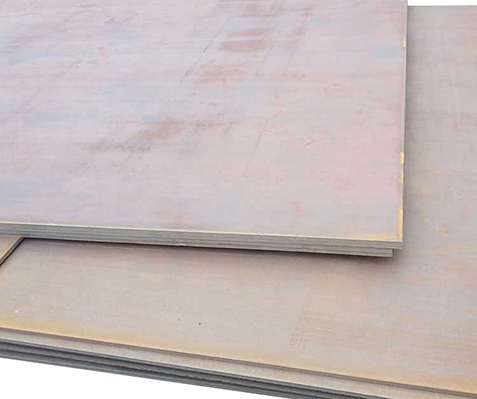

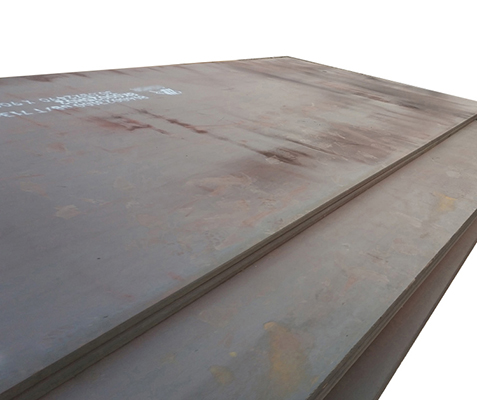

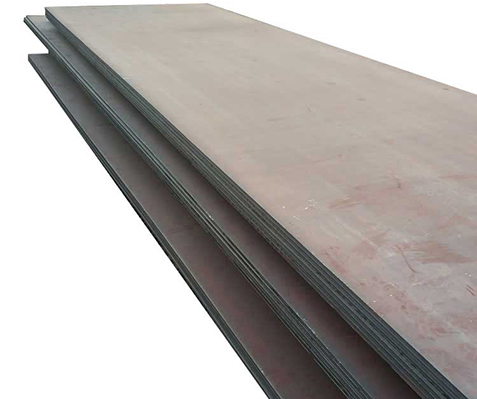

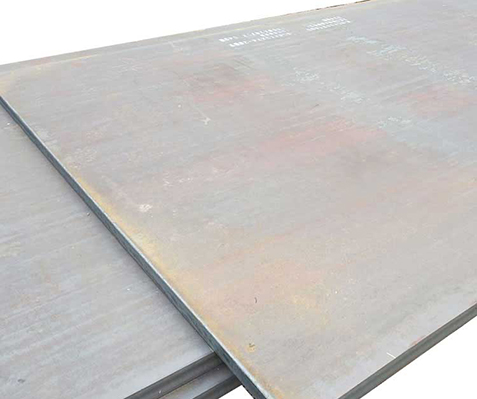

ASME SA387 GR.22 CL2 steel for boilers and pressure vessels
ASME SA387 Grade 22 Class 2 is a chromium-molybdenum alloy steel plate primarily intended for welded boiler and pressure vessels designed for elevated temperature service. It contains approximately 2.25% Chromium and 1% Molybdenum, offering excellent corrosion resistance, oxidation resistance, and high tensile strength at elevated temperatures (up to 600°C). It features good weldability and is widely used in petrochemical, power generation, and pressure vessel industries.
ASTM: A387 Gr.22 Cl.2JIS: SAB22GB: 15CrMoR
MaterialASME SA387 / ASTM A387
Thickness3.5-200 mm
Width1000-3500 mm
Length6000-12000 mm
MOQ1 Ton
Lead Time15-25 days
PortShanghai / Tianjin / Qingdao
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | ASME SA387 / ASTM A387 | Standard | ASME SA387 / ASTM A387 |
| Thickness Range | 3.5-200 mm | Width Range | 1000-3500 mm |
| Length Range | 6000-12000 mm | MOQ | 1 Ton |
| Lead Time | 15-25 days | Port of Shipment | Shanghai / Tianjin / Qingdao |
| C | 0.04-0.15 | Si | ≤0.50 |
| Mn | 0.30-0.60 | P | ≤0.035 |
| S | ≤0.035 | Cr | 1.88-2.62 |
| Mo | 0.85-1.15 | Yield Strength | ≥310 MPa |
| Tensile Strength | 515-690 MPa | Elongation | ≥18% |
