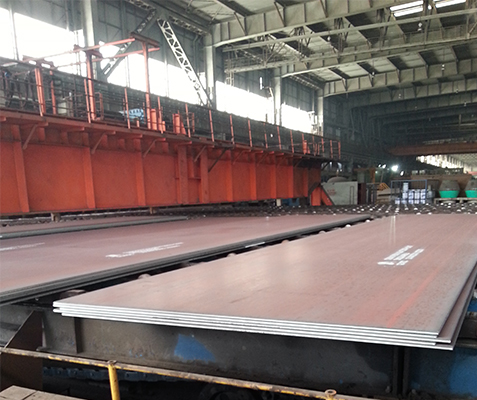

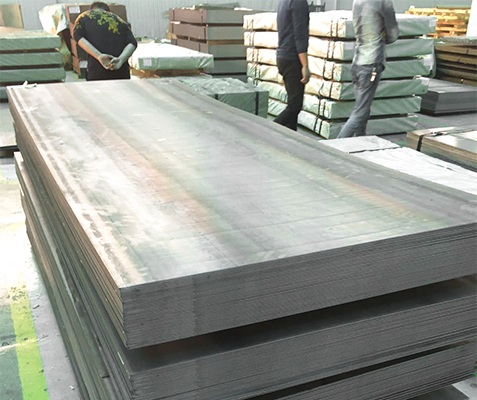

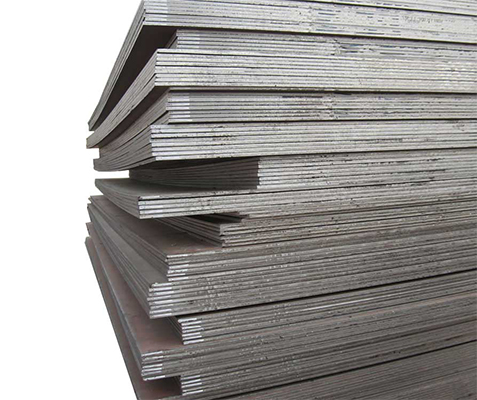

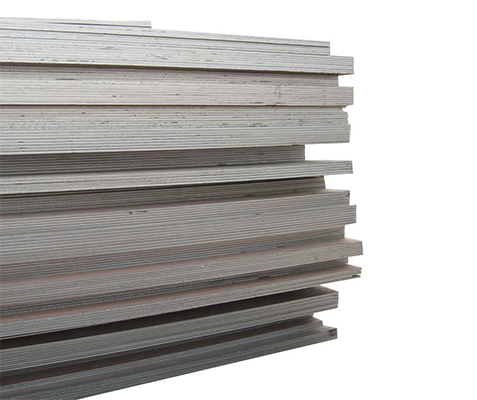

ASTM A709 Weather Resistant Steel Plate
ASTM A709 is a high-strength, low-alloy structural steel plate utilized primarily in the manufacture of bridges. It offers excellent weathering resistance and is available in Grades 36, 50, and 50W. These grades are often specified with Charpy tests referencing the specific zone or lowest anticipated service temperature.
ASTM: A709EN: S355J2WP / S355J0WJIS: SS400 / SM490GB: Q355NH / Q415NH
MaterialASTM A709 / EN10025 / JIS G3106 / GB/T 4171
Thickness4mm - 150mm
Width50mm - 4000mm
Length1000mm - 12000mm
MOQ1 Ton
Lead Time7-15 days
PortTianjin / Shanghai
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | ASTM A709 / EN10025 / JIS G3106 / GB/T 4171 | Standard | ASTM A709 / EN10025 / JIS G3106 / GB/T 4171 |
| Thickness Range | 4mm - 150mm | Width Range | 50mm - 4000mm |
| Length Range | 1000mm - 12000mm | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Tianjin / Shanghai |
| C | 0.20-0.26% | Si | 0.15-0.40% |
| Mn | 0.75-1.35% | P | ≤0.04% |
| S | ≤0.05% | Cu | 0.20-0.40% |
| Cr | 0.40-0.70% | Tensile Strength | ≥490 MPa |
| Yield Strength | ≥250 MPa | Elongation | ≥16% |
Request a Quote for This Product
