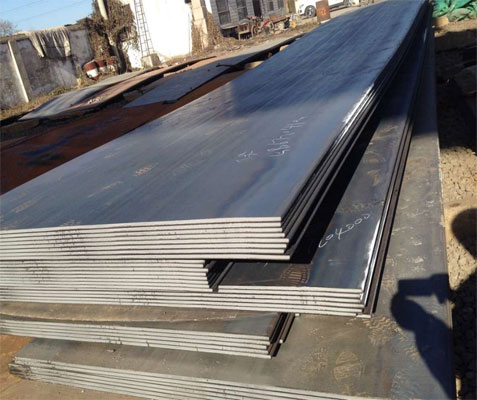

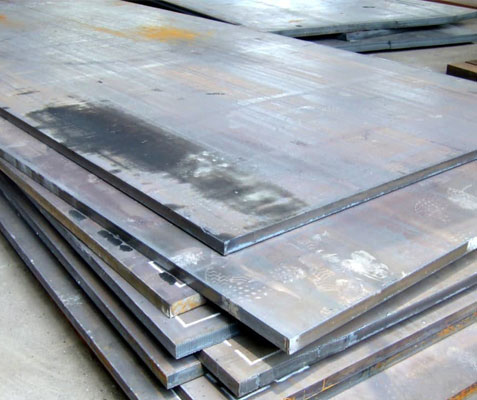

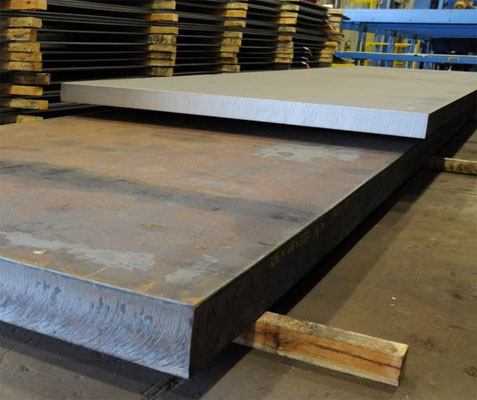

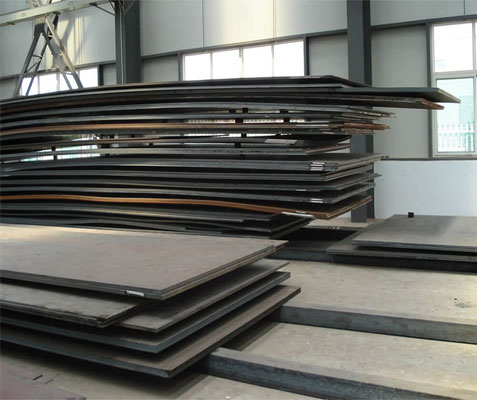

ASTM Pressure Vessel Steel Plate
GNEE ASTM Pressure Vessel Steel Plates are manufactured to strict standards like ASTM A516, A387, and A537. These plates offer high toughness, excellent weldability, and superior resistance to corrosion and elevated temperatures. Ideal for moderate to low-temperature pressure vessel applications, they ensure structural integrity and safety under high internal pressure. Available in carbon steel and chromium-molybdenum alloy grades.
ASTM: A516 Gr.60/70, A387 Gr.11/22, A537 Cl.1/2/3ASME: SA302 Gr.C, SA387 Gr.11/22GB: Q345R, 15CrMoRJIS: SB480M
MaterialASTM A516/A516M / ASTM A387/A387M / ASTM A537/A537M / ASTM A285/A285M / ASME SA302 / JIS G3103
Thickness4-150 mm
Width1500-3200 mm
Length4000-25000 mm
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | ASTM A516/A516M / ASTM A387/A387M / ASTM A537/A537M / ASTM A285/A285M / ASME SA302 / JIS G3103 | Standard | ASTM A516/A516M / ASTM A387/A387M / ASTM A537/A537M / ASTM A285/A285M / ASME SA302 / JIS G3103 |
| Thickness Range | 4-150 mm | Width Range | 1500-3200 mm |
| Length Range | 4000-25000 mm | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin |
| C | 0.15-0.25 | Si | 0.15-0.35 |
| Mn | 0.40-1.60 | P | ≤0.035 |
| S | ≤0.035 | Cr | 0.50-0.80 (for A387) |
| Mo | 0.45-0.65 (for A387) | Tensile Strength | ≥415 MPa |
| Yield Strength | ≥205 MPa | Elongation | ≥20% |
