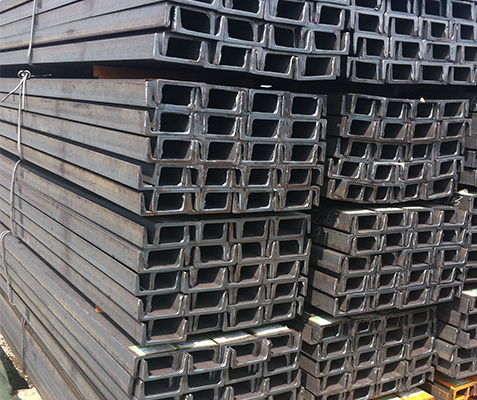

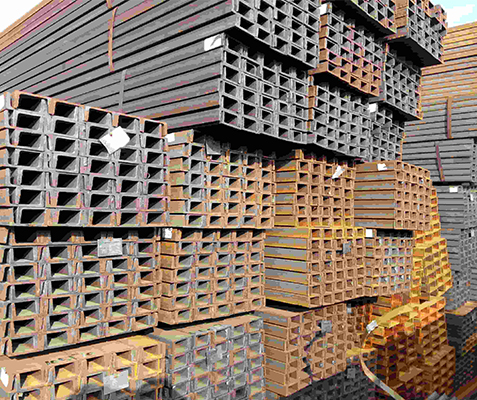

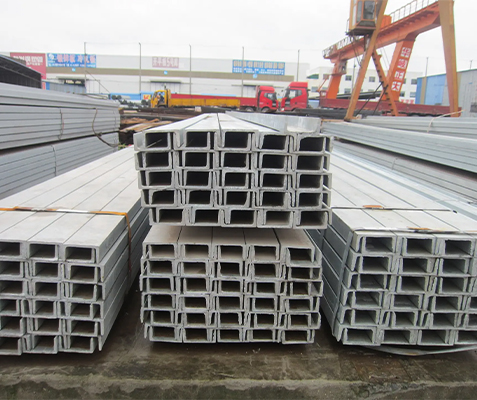

Channel steel
Gnee Channel Steel is a conventional production component generally manufactured from hot-rolled steel. It features a wide, flat surface with flanges at right angles on both sides, offering excellent durability and support capabilities. Available in various standards including ASTM, JIS, and GB, it is widely used in building structures, ship beams, industrial furnaces, and long-span bridges.
ASTM: A36/A572JIS: SS400/SM400GB: Q235B/Q345B
MaterialASTM A36 / JIS G3192 / KS D3502 / GB/T 706
Thickness3mm-12.5mm
Width40mm-200mm (Based on model)
Length6m, 9m, 12m or custom
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | ASTM A36 / JIS G3192 / KS D3502 / GB/T 706 | Standard | ASTM A36 / JIS G3192 / KS D3502 / GB/T 706 |
| Thickness Range | 3mm-12.5mm | Width Range | 40mm-200mm (Based on model) |
| Length Range | 6m, 9m, 12m or custom | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin |
| C | ≤0.25% | Si | ≤0.40% |
| Mn | 0.80-1.20% | P | ≤0.040% |
| S | ≤0.050% | Tensile Strength | ≥400 MPa |
| Yield Strength | ≥235 MPa |
