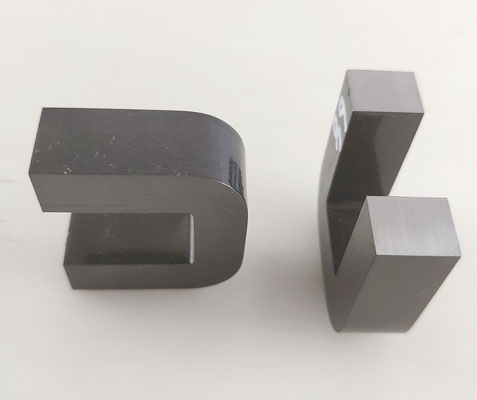

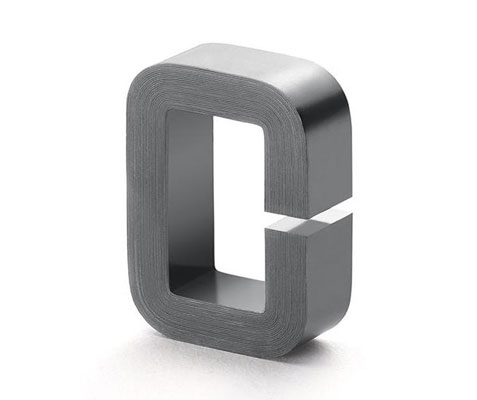

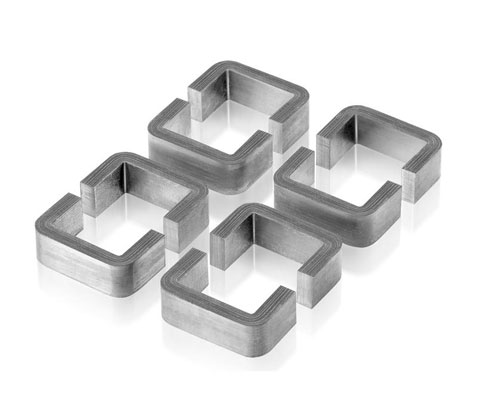

CRGO Grain‑Oriented Silicon Steel Laminated Transformer Core

Cold Rolled Grain Oriented (CRGO) Silicon Steel is specifically designed for transformer cores. It features high magnetic permeability along the rolling direction, resulting in low iron loss and low magnetizing current. The material allows for efficient energy conversion with minimal noise and no magnetic flux leakage. Available in various thicknesses (0.23mm, 0.27mm, 0.30mm, 0.35mm) and can be supplied as tape-wound cores or laminations.

ASTM: A773JIS: JIS C 2552GB: DGQ130

MaterialIEC 60404-8-4 / GB/T 2521

Thickness0.23mm - 0.30mm (and other custom sizes)

WidthCustomized according to core design

LengthTape wound or Lamination cut

MOQ1 Ton

Lead Time15-25 days

PortShanghai / Tianjin

Response within 24 hours

In Stock — Ready to Ship

Material Grade	IEC 60404-8-4 / GB/T 2521	Standard	IEC 60404-8-4 / GB/T 2521
Thickness Range	0.23mm - 0.30mm (and other custom sizes)	Width Range	Customized according to core design
Length Range	Tape wound or Lamination cut	MOQ	1 Ton
Lead Time	15-25 days	Port of Shipment	Shanghai / Tianjin
C	≤0.08	Si	2.8-3.2
Mn	≤0.50	P	≤0.03
S	≤0.03	Al	0.05-0.15
Tensile Strength	≥350 MPa	Elongation	≥2%
