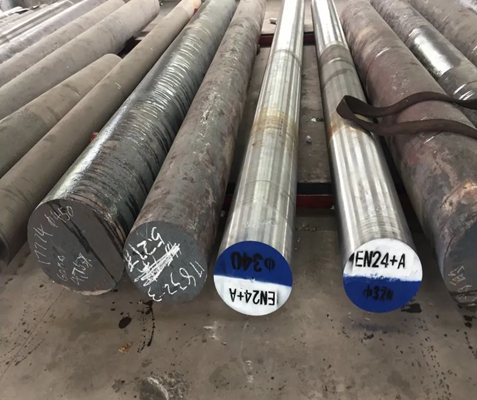

DIN 30CrNiMo8 is a quenched and tempered alloy structural steel with medium hardenability, designed for heavy-duty components. It features high elasticity, strength exceeding 1560 N/mm² at small diameters, and excellent resistance to variable loads and impacts. It is suitable for automotive and mechanical engineering applications requiring optimum strength or toughness. Note: Welding requires preheating due to poor weldability.
| Material Grade | DIN 17200 / EN 10083-3 / BS 970 823M30 | Standard | DIN 17200 / EN 10083-3 / BS 970 823M30 |
| Thickness Range | Round Bar | Width Range | Round Bar |
| Length Range | Customizable | Diameter | 20-130 mm |
| MOQ | 1 Ton | Lead Time | 7-15 days |
| Port of Shipment | Shanghai / Tianjin | C | 0.26-0.34 |
| Si | ≤0.40 | Mn | 0.50-0.80 |
| P | ≤0.025 | S | ≤0.035 |
| Cr | 1.80-2.20 | Mo | 0.30-0.50 |
| Ni | 1.80-2.20 | Tensile Strength | ≥1560 MPa |
| Hardness (Soft Annealed) | ≤248 HRB | Density | 7.82 g/cm³ |
