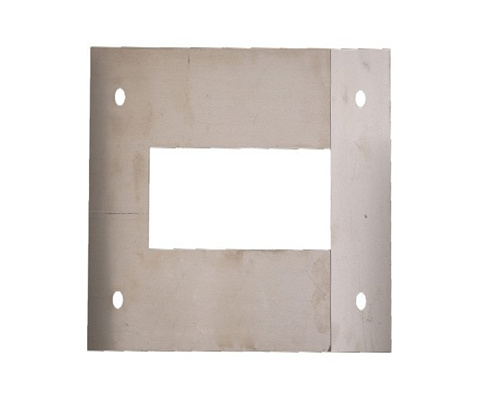

CRGO Grain‑Oriented Electrical Steel for Power Transformer

Grain-oriented silicon steel (GOES) is a soft magnetic polycrystalline metallic alloy specifically engineered for transformer cores. It features high magnetic permeability and low core loss along the rolling direction, significantly improving energy efficiency in electrical transformers. Available in various grades (e.g., UI series) with different thicknesses and coating types.

ASTM: A773JIS: JIS C 2551 (JIS SU), JIS C 2552 (JIS Z)GB: Q111-Q138 (High permeability grades)

MaterialGB/T 2521 / IEC 60404

Thickness0.20 - 0.65 mm

WidthUp to 1100 mm

LengthCoil or Cut-to-size

MOQ1 Ton

Lead Time15-25 days

PortTianjin / Shanghai

Response within 24 hours

In Stock — Ready to Ship

Material Grade	GB/T 2521 / IEC 60404	Standard	GB/T 2521 / IEC 60404
Thickness Range	0.20 - 0.65 mm	Width Range	Up to 1100 mm
Length Range	Coil or Cut-to-size	MOQ	1 Ton
Lead Time	15-25 days	Port of Shipment	Tianjin / Shanghai
C	≤0.08	Si	2.8-3.6
Mn	≤0.50	P	≤0.020
S	≤0.020	Al	≥0.50
Surface Hardness	N/A	Insulation Coating Adhesion	Pass
