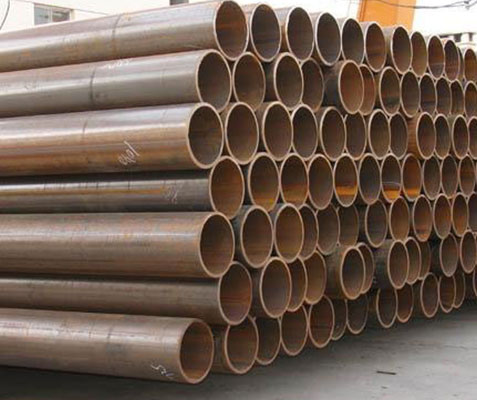

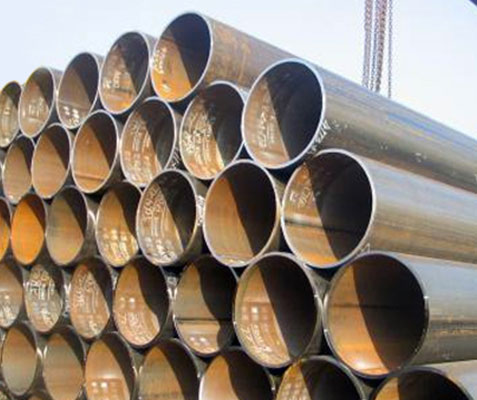

ERW Steel Pipe
ERW (Electric Resistance Welded) steel pipe is manufactured by welding flat steel strips using high-frequency induction. It features high precision, smooth weld seams, and excellent mechanical properties. Available in various grades (API 5L, ASTM A53, etc.) and surface treatments (black, galvanized, coated). Suitable for oil, gas, water, and structural engineering.
ASTM: A53/A500JIS: G3466GB: Q235B/Q345B
MaterialAPI 5L PSL1/PSL2 / ASTM A53 / ASTM A500 / JIS G3466 / EN10219-1 / EN10217-1
Thickness1mm - 17.5mm
WidthN/A (Pipe Diameter)
Length0.5m - 22m (Customizable: 5.8/6/11.8/12m, SRL, DRL)
MOQ1 Ton
Lead Time7-25 days
PortTianjin / Shanghai
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | API 5L PSL1/PSL2 / ASTM A53 / ASTM A500 / JIS G3466 / EN10219-1 / EN10217-1 | Standard | API 5L PSL1/PSL2 / ASTM A53 / ASTM A500 / JIS G3466 / EN10219-1 / EN10217-1 |
| Thickness Range | 1mm - 17.5mm | Width Range | N/A (Pipe Diameter) |
| Length Range | 0.5m - 22m (Customizable: 5.8/6/11.8/12m, SRL, DRL) | MOQ | 1 Ton |
| Lead Time | 7-25 days | Port of Shipment | Tianjin / Shanghai |
| C | 0.25-0.30 | Si | 0.40 |
| Mn | 0.80-1.20 | P | ≤0.050 |
| S | ≤0.045 | Tensile Strength | ≥330 MPa |
| Yield Strength | ≥205 MPa |
