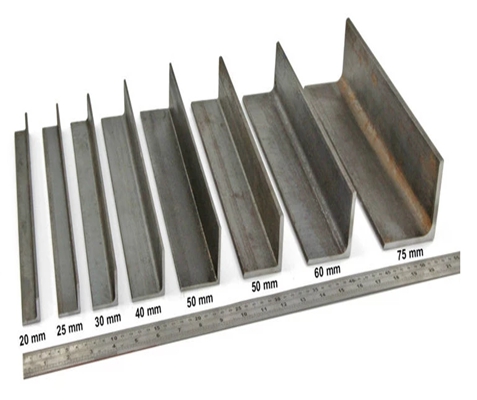

JIS SS490 angle bar
JIS SS490 structural steel angle is a high-strength carbon steel section, significantly stronger than SS400, allowing for reduced weight and thickness in designs. It is hot-rolled and available in equal and unequal leg types. Surface treatments include black, galvanized, or painted finishes. Note: Due to low corrosion resistance, black angles are not recommended for wet or corrosive environments; galvanized or painted options are preferred.
ASTM: A36/A572GB: Q235B/Q345BDIN: S235/S275
MaterialJIS G3101-2004
Thickness2 - 20 mm
WidthEqual: 20-100 mm; Unequal: 30x20 to 250x90 mm
Length6 m, 9 m, 12 m or per request
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | JIS G3101-2004 | Standard | JIS G3101-2004 |
| Thickness Range | 2 - 20 mm | Width Range | Equal: 20-100 mm; Unequal: 30x20 to 250x90 mm |
| Length Range | 6 m, 9 m, 12 m or per request | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin |
| C | ≤0.20 | Si | ≤0.30 |
| Mn | 0.60-1.00 | P | ≤0.050 |
| S | ≤0.050 | Tensile Strength | 490-610 MPa |
| Yield Point (≤16mm) | ≥285 MPa | Yield Point (16-40mm) | ≥275 MPa |
