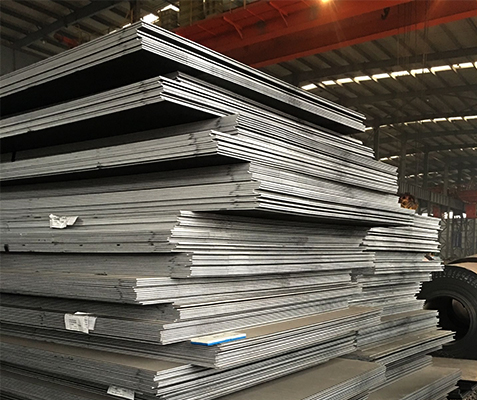

NK AH36 DH36 EH36 FH36 shipbuilding steel plates

NK AH36, DH36, EH36, and FH36 are high-tensile strength marine steel grades approved by Nippon Kaiji Kyokai (ClassNK). They feature excellent toughness and corrosion resistance, suitable for harsh marine environments. These plates are primarily used for building large vessels, offshore platforms, and critical structural components requiring high strength and low-temperature impact resistance.

ASTM: A131 Grade DH36/EH36/FH36EN: S355NL/EL3/FL3GB: CCS AH36/DH36/EH36/FH36

MaterialJIS G3129 / NK (Nippon Kaiji Kyokai)

Thickness6.5-150 mm

Width1500-4000 mm

Length6000-18000 mm

MOQ1 Ton

Lead Time7-15 days

PortShanghai / Tianjin / Qingdao

Response within 24 hours

In Stock — Ready to Ship

Material Grade	JIS G3129 / NK (Nippon Kaiji Kyokai)	Standard	JIS G3129 / NK (Nippon Kaiji Kyokai)
Thickness Range	6.5-150 mm	Width Range	1500-4000 mm
Length Range	6000-18000 mm	MOQ	1 Ton
Lead Time	7-15 days	Port of Shipment	Shanghai / Tianjin / Qingdao
C	≤0.18	Si	0.10-0.50
Mn	0.90-1.60	P	≤0.035
S	≤0.035	Al	≥0.015
Cu	≤0.35	Yield Strength	≥355 MPa
Tensile Strength	490-620 MPa	Elongation	≥20%
Impact Test Temp (AH36)	0°C	Impact Test Temp (DH36)	-20°C
Impact Test Temp (EH36)	-40°C	Impact Test Temp (FH36)	-60°C
