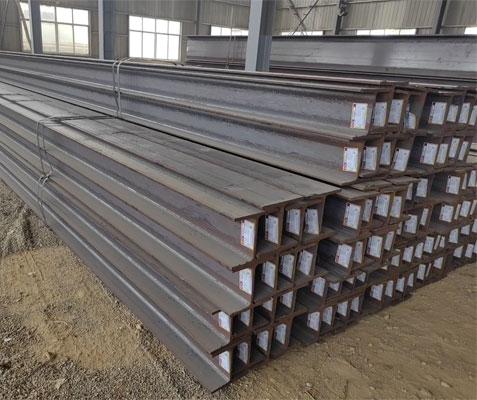

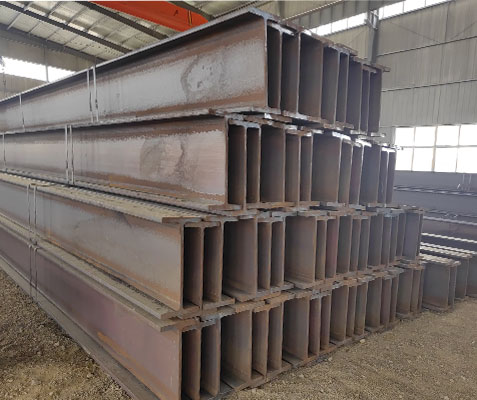

Q355B high frequency welded H‑beam HF welded H section steel
Q355B high frequency welded H-beam is an efficient and economic profile with a reasonable cross-section shape that offers higher section moment and load-bearing capacity than hot-rolled steel of the same weight. It allows for customizable processing, punching, branch cutting, and galvanizing. The welding process does not alter the base metal properties, making it ideal for special project specifications.
ASTM: A572 Gr.50JIS: SM490BGB: Q355B
MaterialGB/T 1591 / EN 10025-2
Thickness5-30 mm (Flange/Webs)
Width100-200 mm
Length6000-13000 mm
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | GB/T 1591 / EN 10025-2 | Standard | GB/T 1591 / EN 10025-2 |
| Thickness Range | 5-30 mm (Flange/Webs) | Width Range | 100-200 mm |
| Length Range | 6000-13000 mm | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin |
| C | ≤0.20 | Si | ≤0.55 |
| Mn | 1.00-1.60 | P | ≤0.035 |
| S | ≤0.035 | Yield Strength | ≥355 MPa |
| Tensile Strength | 470-630 MPa |
