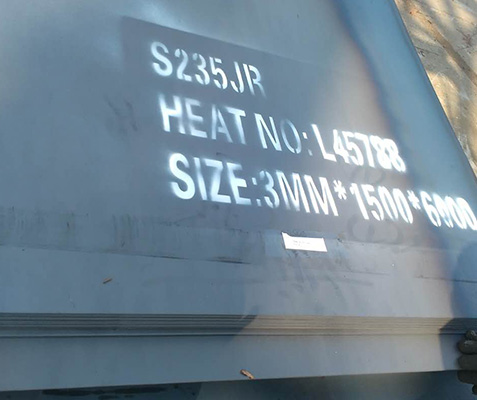

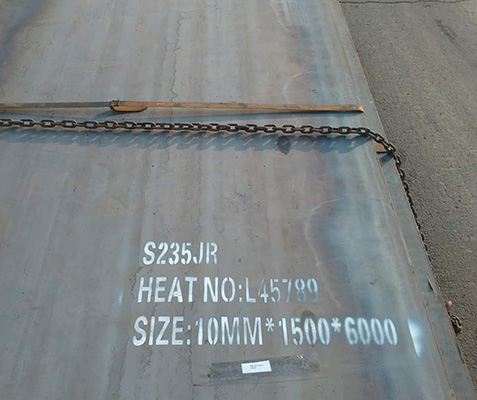

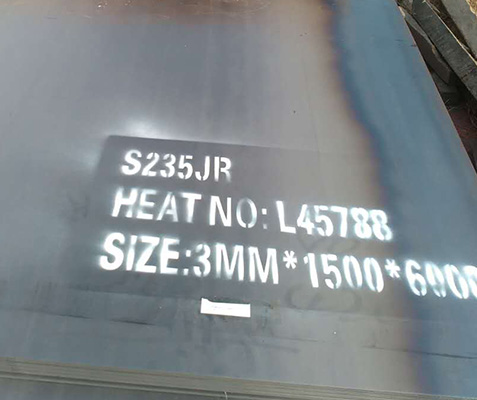

EN10025‑2 S235JR steel plate
EN10025-2 S235JR is a common carbon structural steel plate. The 'S' stands for structural steel, '235' indicates the minimum yield strength of 235 MPa for thickness under 16mm, and 'JR' denotes an impact test at +20°C. It is widely used in riveted, bolted, or welded constructions for bridges and buildings.
ASTM: A36JIS: SS400GB: Q235B
MaterialEN 10025-2
Thickness5-400 mm
Width1500-3500 mm
Length6000-12000 mm
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | EN 10025-2 | Standard | EN 10025-2 |
| Thickness Range | 5-400 mm | Width Range | 1500-3500 mm |
| Length Range | 6000-12000 mm | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin |
| C | ≤0.19 | Si | ≤1.50 |
| Mn | ≤1.50 | P | ≤0.040 |
| S | ≤0.040 | Yield Strength (≤16mm) | ≥235 MPa |
| Tensile Strength | 360-510 MPa | Elongation | 21-26% |
| Impact Energy (JR) | 27J |
