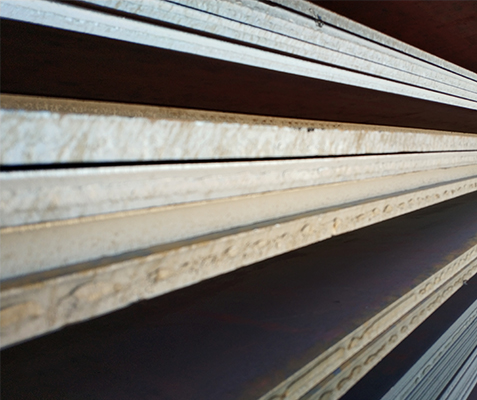

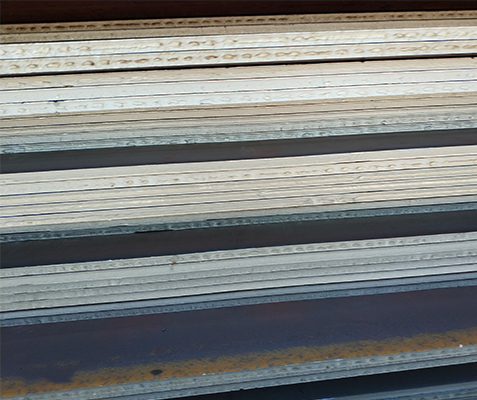

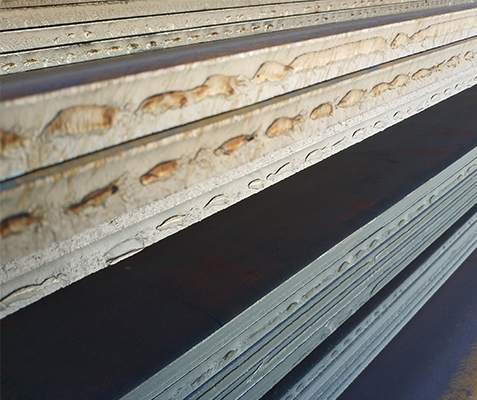

S690QL high‑strength steel plate
S690QL is a high yield strength structural steel grade produced in compliance with EN 10025-6. It is heat treated using the quench and temper process, offering excellent bending and welding properties. Due to its high strength, it promotes leaner designed structures with increased payload capacity and energy efficiency. It features low notch toughness testing temperatures for superior impact resistance.
ASTM: A514 / A517 (Approx.)JIS: SM570 / SM690 (Approx.)GB: Q690D/E
MaterialEN 10025-6:2004
Thickness3.5 - 150 mm
Width1500 -4000 mm
Length6000 - 14000 mm
MOQ1 Ton
Lead Time7-15 days
PortShanghai / Tianjin / Qingdao
Response within 24 hours
In Stock — Ready to Ship
| Material Grade | EN 10025-6:2004 | Standard | EN 10025-6:2004 |
| Thickness Range | 3.5 - 150 mm | Width Range | 1500 -4000 mm |
| Length Range | 6000 - 14000 mm | MOQ | 1 Ton |
| Lead Time | 7-15 days | Port of Shipment | Shanghai / Tianjin / Qingdao |
| C | ≤0.20 | Si | ≤0.80 |
| Mn | ≤1.70 | P | ≤0.025 |
| S | ≤0.015 | Cr | ≤1.50 |
| Ni | ≤2.00 | Mo | ≤0.70 |
| Cu | ≤0.50 | Yield Strength (Reh) | ≥690 MPa (t≤40mm) |
| Tensile Strength (Rm) | 770-940 MPa | Elongation | ≥14% |
